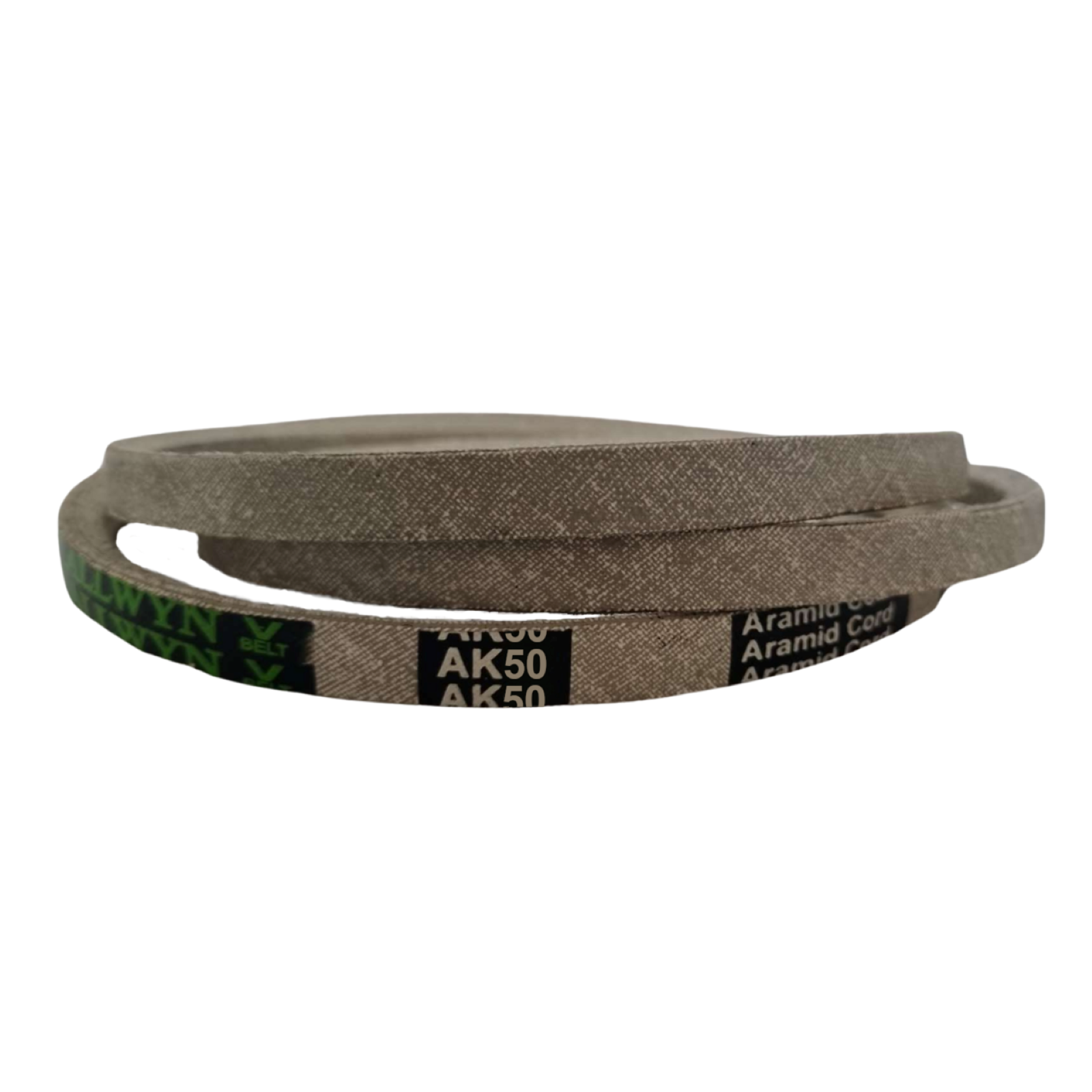

Replaces Ariens 72123, 072123, MTD 754-0229, Scag 482009 and Victa TM62644A, 754-0264, TM60542A and 754-0184

Belt Replaces:

Ariens   72123, 072123
MTD   754-0229
Scag   482009
Victa   TM62644A, 754-0264, TM60542A and 754-0184

___________________________________________________________

Fits:

Ariens
32" cut   8hp and 10hp selected ride on lawnmowers as the cutter deck belt

MTD
44" cut   12.5hp, 14hp selected models as the PTO to deck belt

Scag
40", 48" and 52" Cut   Turf Tiger as the transmission drive belt

Victa
26" cut   5hp 5/26 (MTD Yardman) late models 1983 onwards as the cutter drive belt
34" cut   10hp 10/34 models 1975 to 1977 as the cutter drive belt

___________________________________________________________

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 50" (mm): 1270mm
Outside circumference (inches) 52" (mm): 1320.8mm
(Non-genuine)
Made with KEVLAR™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.

All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• Allwyn belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
