Belt Replaces Cox W04, Graden 5644 and Husqvarna 539 11 04-11

Belt Replaces:

Cox   W04
Graden   5644
Husqvarna   539 11 04-11

___________________________________________________________

Fits:

Cox
48" cut   1998 to 2002 new generation 13hp, 14hp, 14.5hp, 16.5hp, 16hp and 18hp 5398A, CR536, CR538, CR5310, CR5312 and CR5314 as the cutter deck belt

Graden
36" cut Nitro Zero-turn as the transmission belt
42" Nitro Zero-turn as the transmission belt

Husqvarna
46" cut RZ4621 - 966582301 stamped on the deck 21hp single cylinder ZTR as the transmission drive belt

___________________________________________________________

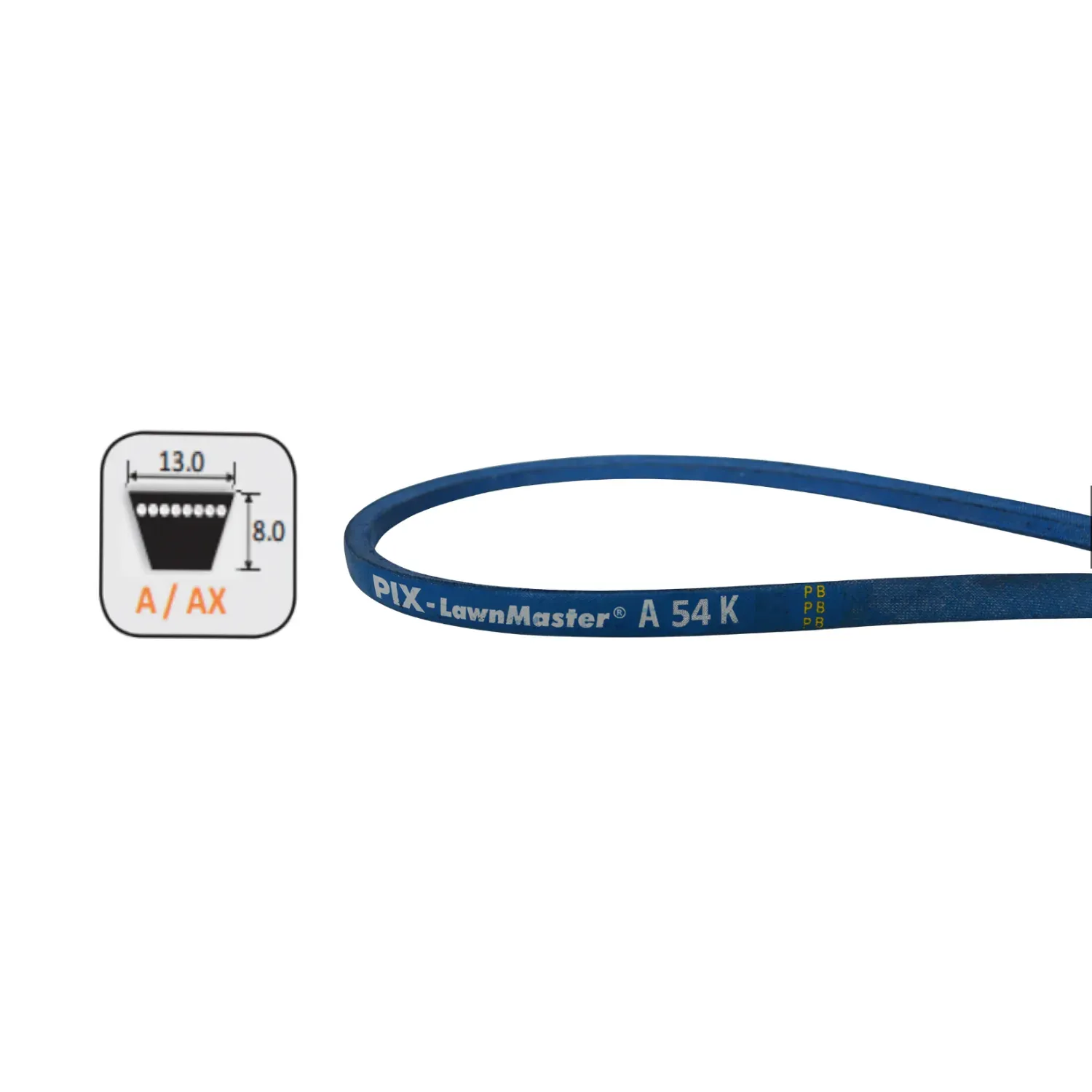

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 54" (mm): 1371mm
Outside circumference (inches) 56" (mm): 1422.4mm
(Non-genuine)
Made with KEVLAR®

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.

All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
