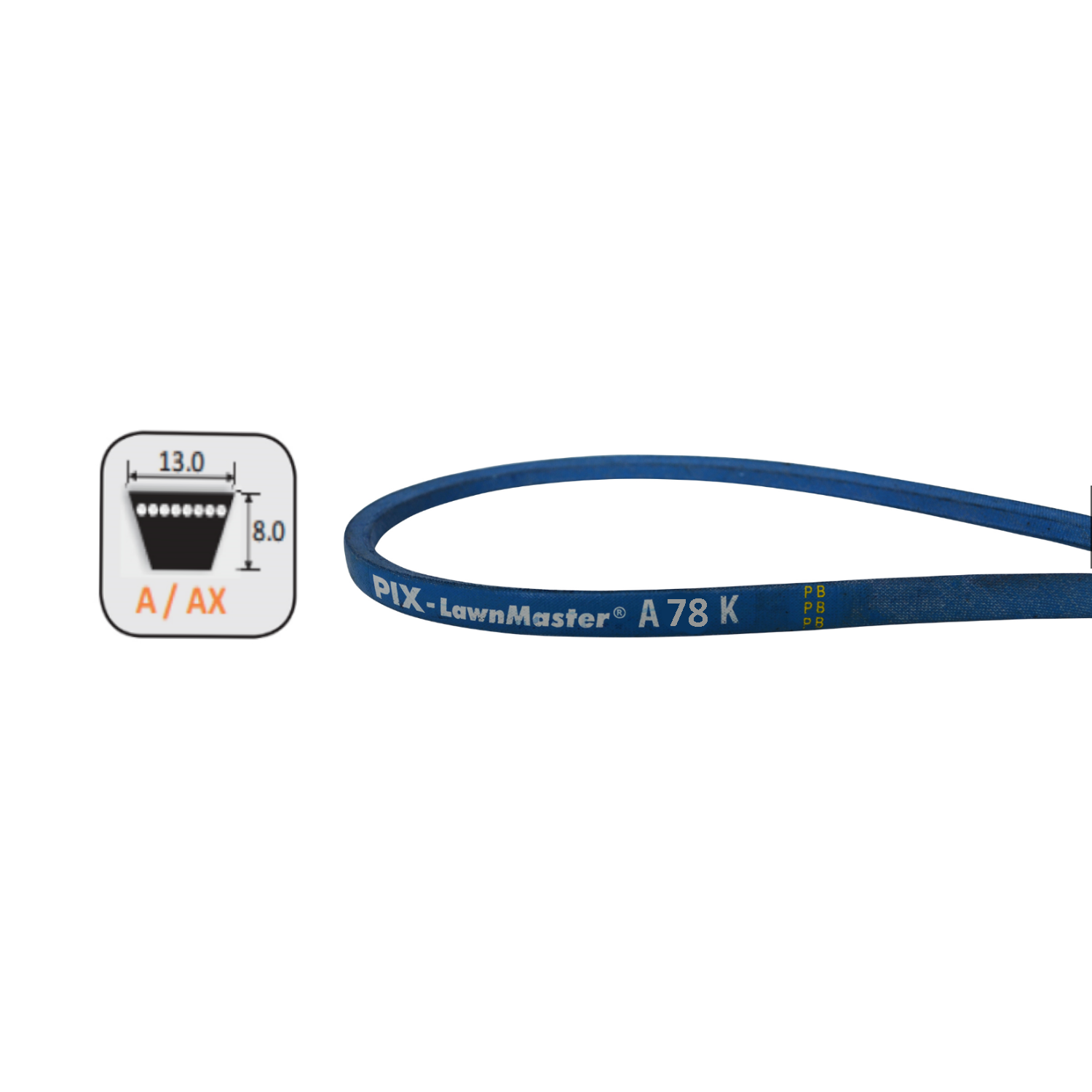

Belt Replaces Cox V28, V04 and SV04, Kingcat V28 or Murray 314572

Replaces Belt#:

Cox   V28, V04 and SV04
Kingcat   V28
Murray   314572

___________________________________________________________

Fits:

Cox
Conquest models   CR8400 and CR8401 as the upper transmission belt
New Generation   13hp, 14hp, 14.5hp, 16.5hp, 16hp, 18hp, 5302G, 5303L and 5398A (1998 to 2002) as the engine to clutch belt
Stockman   16hp SOME 23K94 and SOME 23C95 (1993 to 1994) as the forward and reverse belt
Z Cut model   8804J ZTR (2004) model ride on lawnmower as the direction control belt

Kingcat
40" cut side discharge 16hp electric clutch KR6901, KR6902, KR6903, KR6905, KR6906, KR6907 and KS6904 as the PTO to cutter deck belt
7300J and KR7307 as the cutter deck belt
___________________________________________________________

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 78" (mm): 1981mm
Outside circumference (inches) 80" (mm): 2032mm
(non-genuine)
Made with KEVLAR™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.

All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
