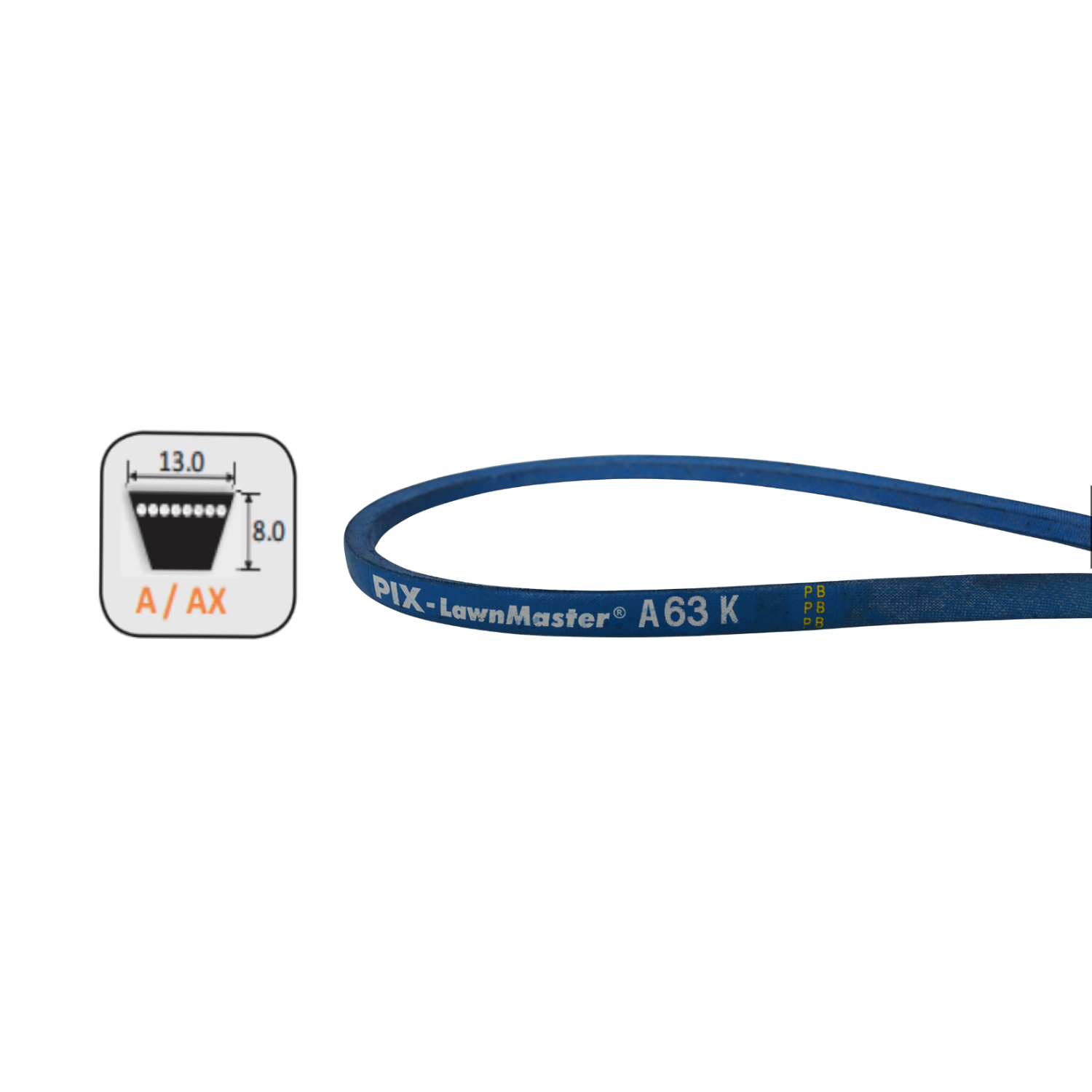

Belt Replaces Rover A06360, Troy Bilt or Bolens 1722238 or 1738496

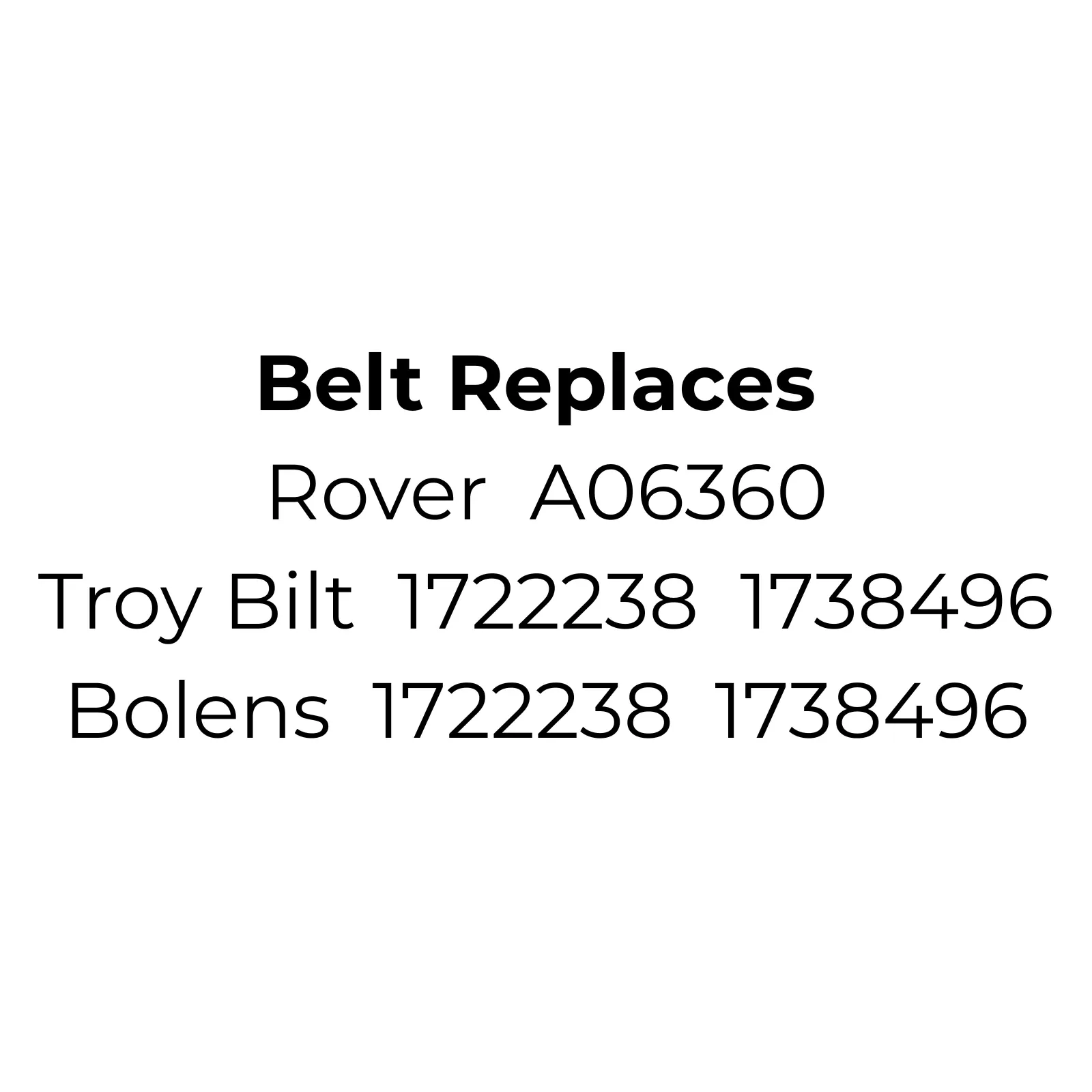

Belt Replaces
Rover   A06360
Troy Bilt   1722238   1738496
Bolens   1722238   1738496

___________________________________________________________

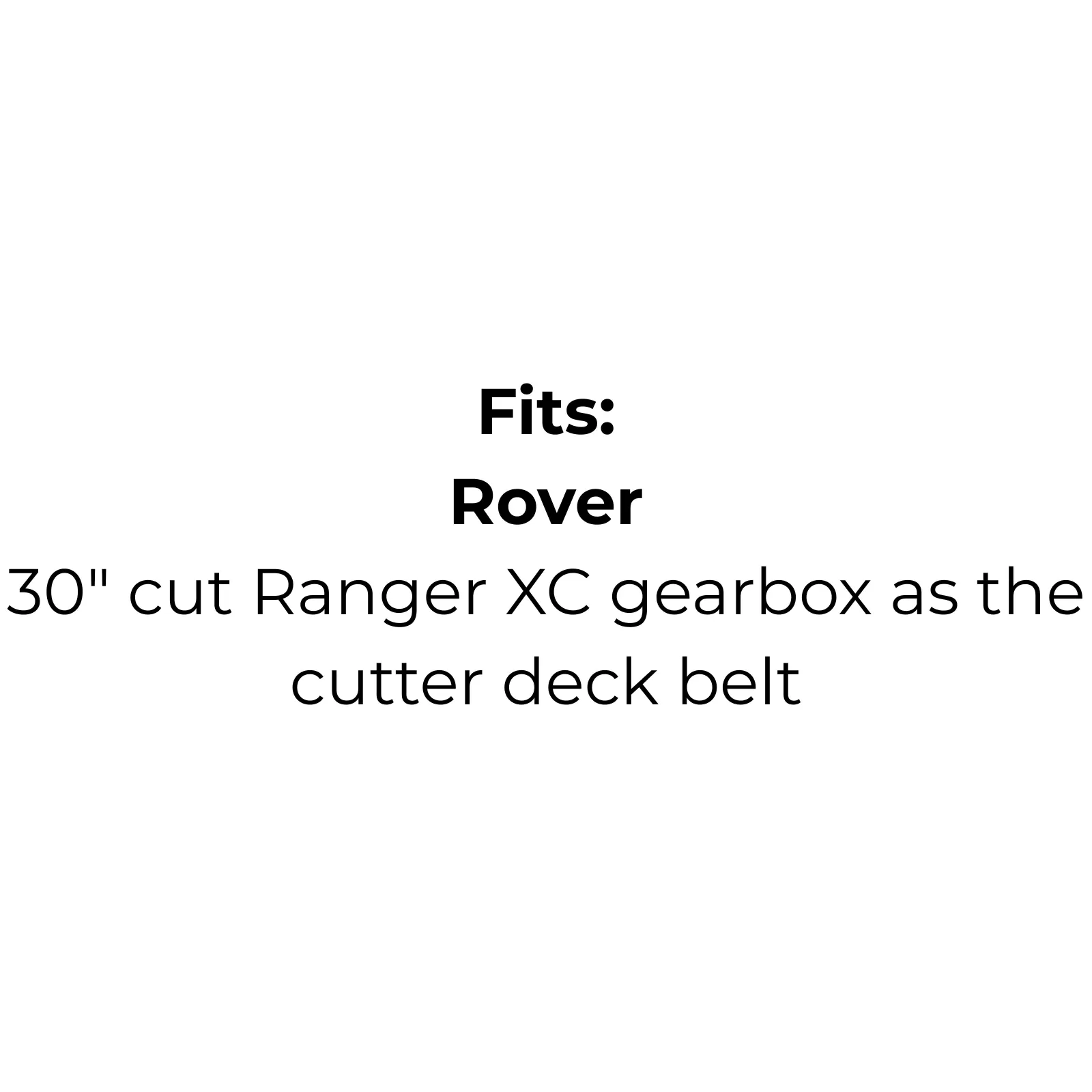

Fits:

Rover
30" cut Ranger XC gearbox as the cutter deck belt

Bolens
28" cut 528, 628, 828 models
30" cut 830, 831 models with serial no. 0300101 to 0399999 as the cutter deck belt

Troy Bilt
Models 14AK811P705 and 13AP60TP766

___________________________________________________________

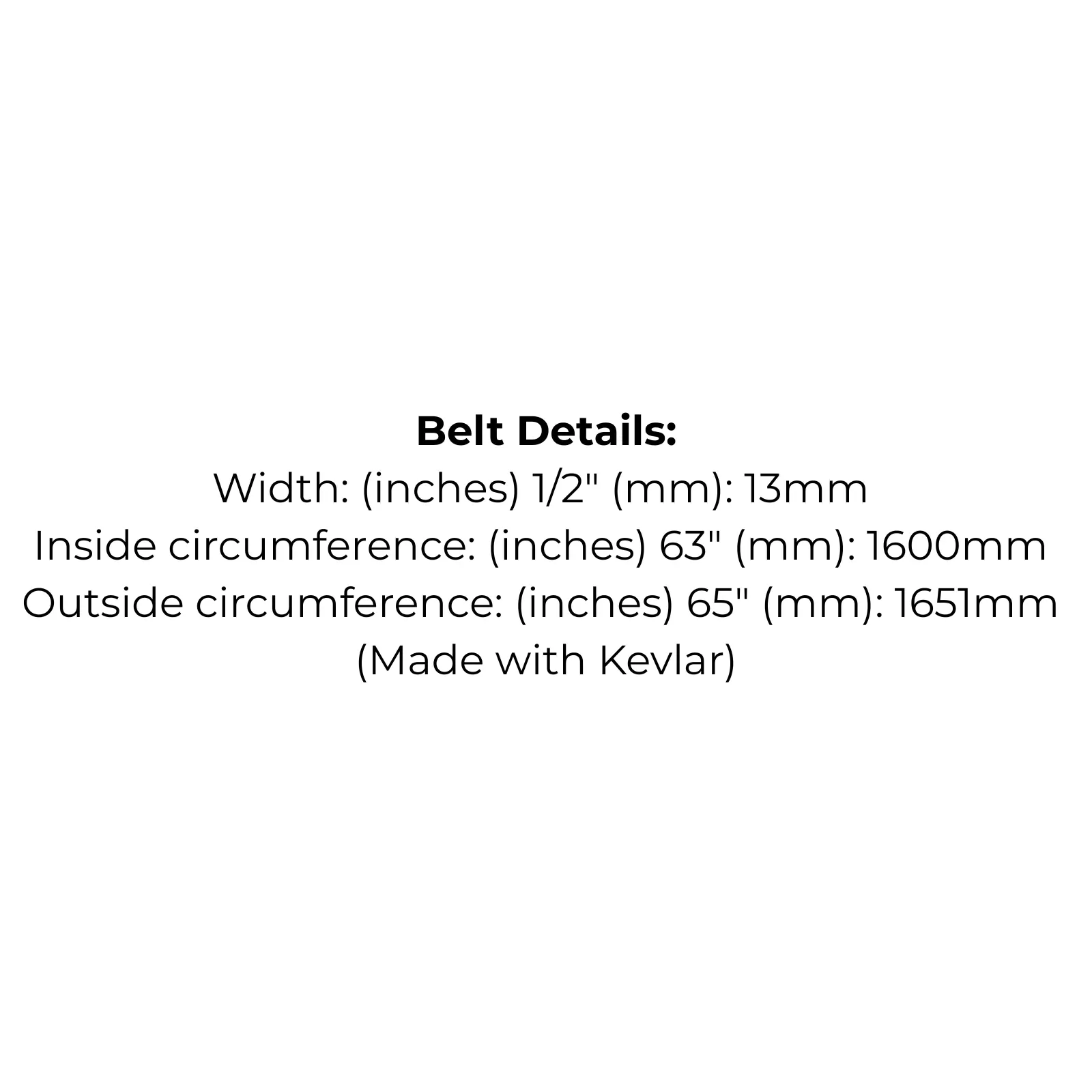

Belt Details:

Width: (inches) 1/2"  (mm): 12.7mm
Inside circumference (inches)63" (mm): 1600mm
Outside circumference (inches) 65" (mm): 1651mm
(Made with Kevlar)

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.

All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
