Belt for Bolens 1747188, John Deere M144570, Murray 710341 incl 037X87 Rover, Stihl-Viking 70048721176 61210710341, Toro 102741, Victa 37X87MA NR71034

Belt Replaces:
Bolens   1747188
John Deere   M144570
Murray   37X87, 037X87, 710341 or 7101749MA
Rover    037X87
Stihl-Viking   7004 872 1176 or 6121 071 0341
Toro   102741
Victa   37X87MA or NR710341

___________________________________________________________

Fits:

Bolens
ST Series gear drive models ST110, ST160, ST125 as the transmission drive belt

John Deere
LT150 as  the traction drive / gear drive belt

Murray
Murray 30" 38" 40"  42" and 46" cut selected  gear drive lawn tractors and 42" cut hydro lawn tractors fitted with Dana or Eaton hydrostatic drives 1997 to 2007  including:
312000X68A and B, X98A and B,  312001X11A, B and C, 312001X50A, B and C,  312002X11A, B and E, X98A and B, 312003X50A and B,  312004X68A, 312006X190A, X50A, B and C, X78B, X11A andB,  31200X50A, B and C, 31201X51A, B and C, X98A, B and C,  385000X68A and B, 385001X51A, 385002X108A, X190A,  385002X50A, B and C, 385002X78A, B and C, 385002X98A, 385003X52A, 385004X52A, 385008X51A and B,  X52A and B, 385009X98A and B,  38500A and B, X192A, X30A, X83A, X92A and B,  385011X50A, B and C, 385012X68A and B, 385013X51A,  385014X98A and B, 385015X50A, B and C,  385016X78A, 38501X50A, B, C, D and E, 385021X53A,  38502X51A, B, C, D and E, X52A, X66A, X67A, X70A,  X86A and B, X98A, B, C and D,  385044X51A, 385047X51A, 38504A, X25A, 38506X199A, X4A, 38510X50A and B,  405000X8D, 405012X108B, 40530X192A, X51A, B and C,  40530X83A, 40530X92A, 40531X50A, 40531X59A, 40536X4A, 40538A, 425002X99B,  42531X7A, 42531X8A, 42532X50A, 42533X30A, 42534A, X18A, X25, X30A, 42536X192A,  X92A, 42537A, X18A, 42538X30A, 42539A, X18A, X92A, 42542X6A, 42543X6A,  42544X31A, X8A and B, 42545X29Aand B,  42560X192B, X30A and B as the transmission / motion  drive belt

Rover Clipper
38" and 40" cut  385002X108A, 405012X108A models as the transmission belt.

Stihl-Viking
38" cut  MT423T as the transmission drive belt
42" cut MT425T as the transmission drive belt
38" cut MT433T and MT444T  as  the transmission drive belt

Toro
36" cut 300, 400 and 500 deck B536MR models only as the PTO to cutter deck belt

Victa
40" cut  Noma 4013TX gear drive models as the transmission drive belt

___________________________________________________________

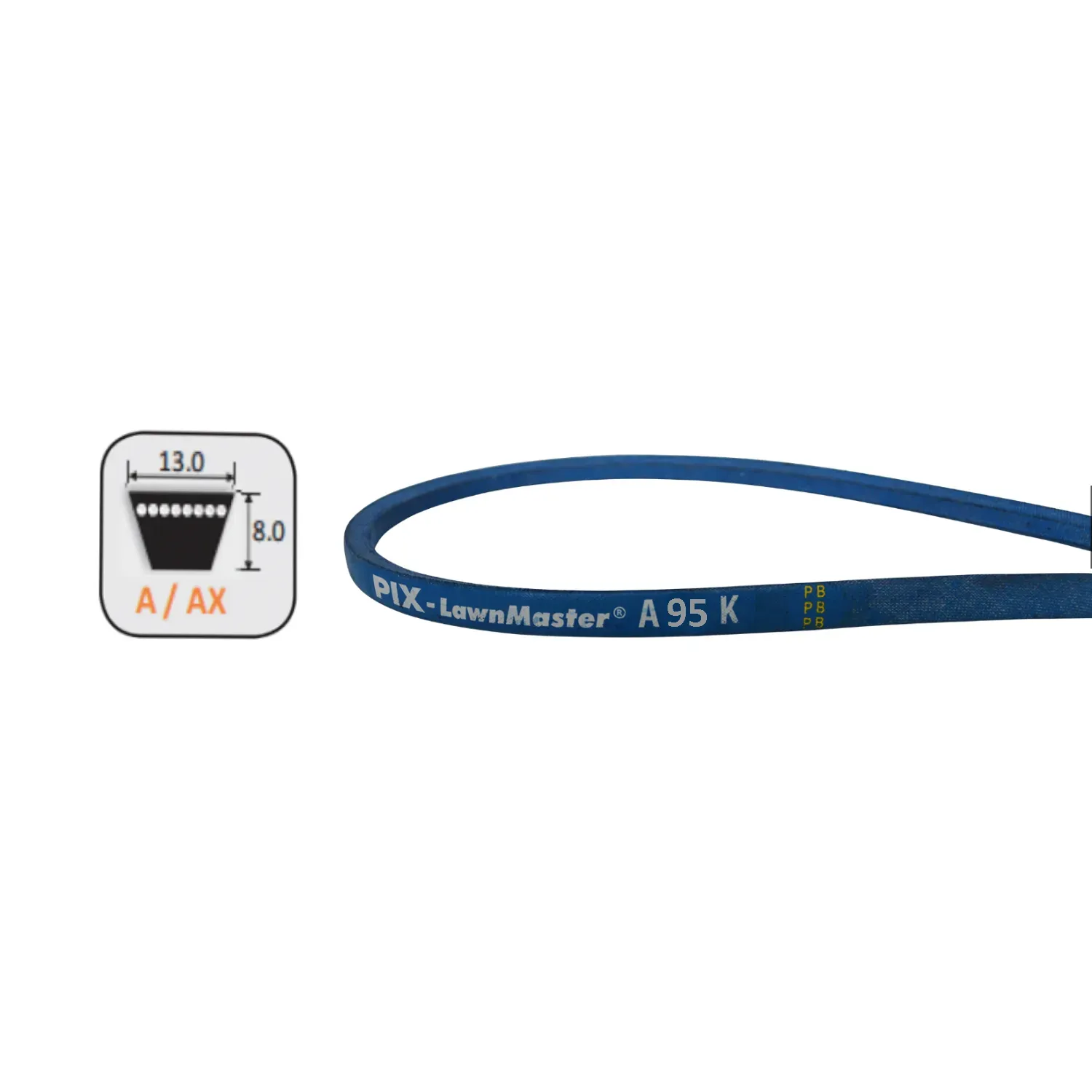

Belt Details:

 Width: (inches) 1/2"  (mm): 12.7mm
Inside circumference (inches) 95" (mm): 2413mm
Outside circumference (inches) 97" (mm): 2463mm
(non-genuine)
Made with KEVLAR™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
