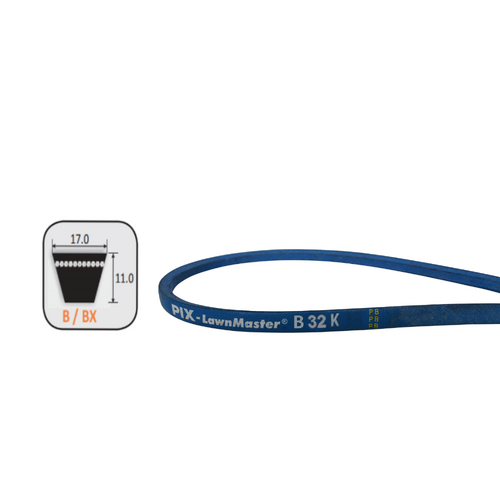

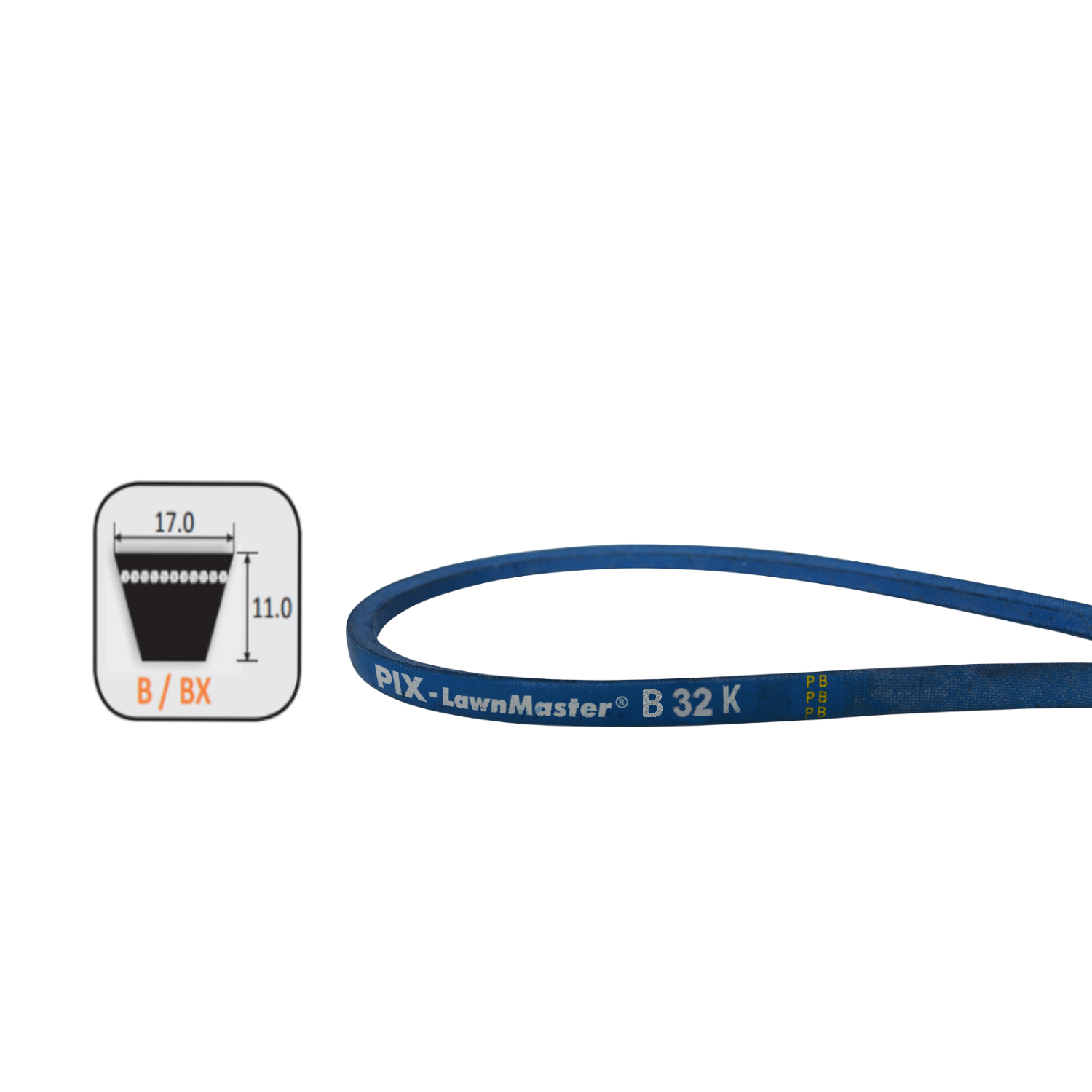

Belt for Cub Cadet, Masport, Morrison, MTD, Rover & Scott Bonnar 754-04331 or 954-04331 and Walker 5234-1

Replaces Belt#:

Cub Cadet   754-04331 or 954-04331
Masport   754-04331 or 954-04331
Morrison   754-04331 or 954-04331
MTD   754-04331 or 954-04331
Rover   754-04331 or 954-04331
Scott Bonnar   754-04331 or 954-04331
Walker   5234-1
___________________________________________________________

Fits:

Cub Cadet

30" cut   2012   Mini Rider Plus CC115MR 13AC26JD330 as the lower transmission belt
30" cut   2013   Mini Rider Plus CC115 13BC26JD330 as the lower transmission belt
30" cut   2014   Mini Rider Plus 13B226JD330 as the lower transmission belt
30" cut   2015   Mini Rider and 13B226JD330 as the lower transmission belt.

Masport

24" cut   2016-2017   Mini Rider 552950 as the lower transmission belt
24" cut   2017-2020   Ride-on lawn mower 552959 as the lower transmission belt
30" cut   2014-2017   RER 3000 552853 as the lower transmission belt
30" cut   2018-2019   RER 3000 10.5/30SD 553007 as the lower transmission belt
30" cut   2018-2020   RER 3000 11.5/30SD 552896 as the lower transmission belt

Morrison
24" cut   2014-2018   Mini Rider 552851 as the lower transmission belt
24" cut   2015   Mini Rider 190cc/24SD 592910 as the lower transmission belt

MTD
30" cut   2014   420/30 13B226JD308 as the lower transmission belt

Rover
24" cut   2016-2020   Micro Rider 13A326JC333 as the lower transmission belt
24" cut   2019-2020   Micro Rider 13B326JC333 as the lower transmission belt
30" cut   2012   Mini Rider 382/30 13A226JD333 as the lower transmission belt
30" cut   2013-2015   Mini Rider 382/30 13B226JD333 as the lower transmission belt
30" cut   2015-2017   Ride-on lawn mower 13C226JD333 as the lower transmission belt
30" cut   2017-2021   Mini Rider 382/30 13A726JD333 as the lower transmission belt

Scott Bonnar
24" cut   2013-2016   Mini Rider 13A326JC373 as the lower transmission belt

Walker
MS 11.2 HP side discharge models only with serial number 95-20381 onwards as the PTO drive belt
___________________________________________________________

Belt Details:

Width: (inches) 5/8" (mm): 17mm
Inside circumference (inches) 32" (mm): 812.8mm
Outside circumference (inches) 35" (mm): 889mm
(Non-genuine)
Made with KEVLAR™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician

Please note:
Due to supply issues some belt sizes are unavailable in PIX brand and have been substituted with Allwyn brand.

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
