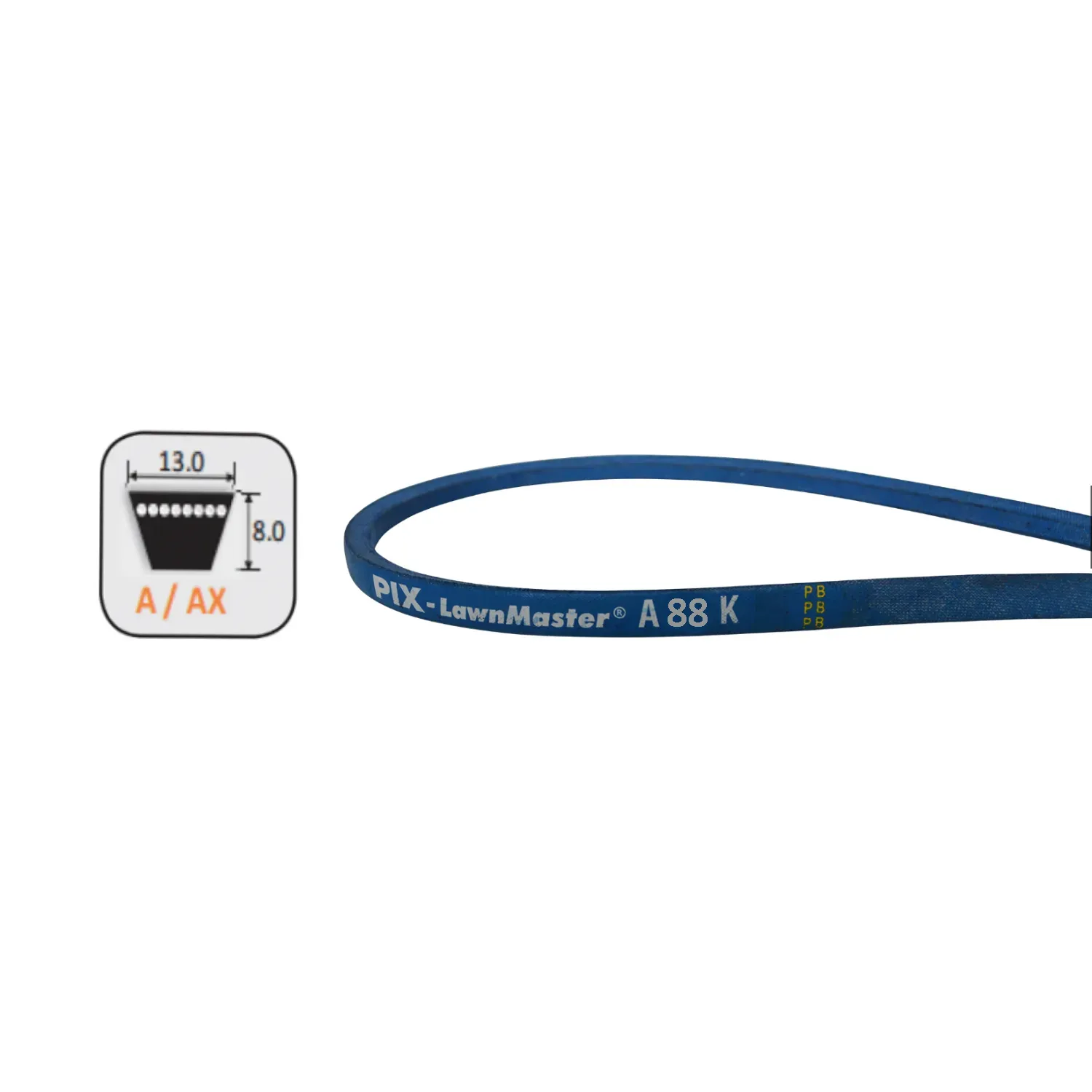

Belt for AYP 193214, Craftsman 125907-X 193214, Kingcat KS500183

Replaces Belt#

AYP  193214
Craftsman   125907, 125907X or 193214
Kingcat   KS500183

___________________________________________________________

Fits:

Craftsman
38" cut   LT1500 Lawn Series 17.5HP model 28015 only as the cutter deck belt
42" cut   YT3000 Yard Series 21hp 28922, 22hp 28934 as the transmission belt
42" cut   YT4000 Yard Series 24hp 28927 as the transmission belt
46" cut   YT3000 Yard Series 21hp 28924 as the transmission belt
46" cut   YT4000 Yard Series 24hp 28928 as the transmission belt

Kingcat
Leopard
Red series 1 up to 1992 as the transmission drive belt
Red series 2 up to 1994 as the transmission drive belt

McCulloch
38" cut   16hp MC16836ST as the cutter deck belt
_______________________________________________________________

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 88" (mm): 2235mm
Outside circumference (inches) 90" (mm): 2286mm
(Non-genuine)
Made with KEVLAR©

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
