Tie Rod End replaces GT06044, GT 06044, GT6044, GT 6044

Tie Rod replaces GT06044, GT 06044, GT6044, GT 6044

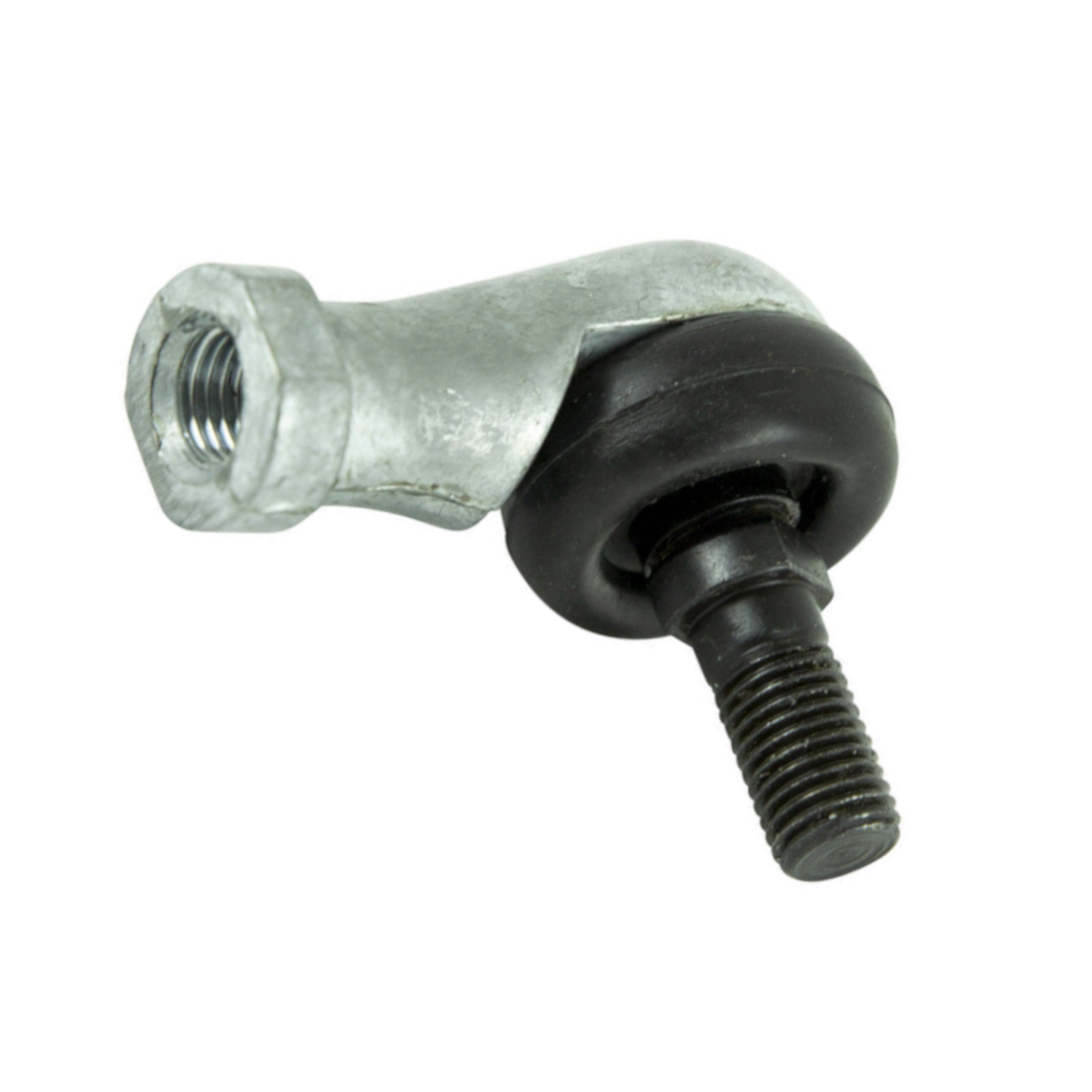

Ball Joint/ Tie Rod End, M10x1.25 Male right hand thread x M10x1.25 Female right hand thread

Replaces:
Greenfield GT06044, GT 06044, GT6044, GT 6044

Fits:
Greenfield
30" cut Evolution III, 10.5/30 and 12.5/30, Evolution III MK2, 11.5/30, Evolution III MK2A, 8.5/30 and 11.5/30, as the tie rod end that connects the steering link rod to the chain sprocket wheel
32" cut Evolution III, 12.5.32, 13/32 Standard and 13/32 Deluxe, Evolution III MK2, 13/32 Standard and 13/32 Deluxe, Evolution III MK2A, 13/32 Standard and 13/32 Deluxe, Evolution e2000, 14/32 and 15/32, as the tie rod end that connects the steering rod to the chain sprocket wheel
32" cut Evolution FASTCUT32, 11.5hpto 18hp, as the tie rod end that connects the steering link rod to the steering crank
32" cut FASTCUT 17.5/32 Standard, GT22670 and 17.5/32 Steel Deck, GT22690, 25/32 Standard, GT22875 and 25/32 Steel Deck, GT22875SD as the inner and outer tie rod ends for the steering drag links and is also used as the rie rod end that connects the steering link rod to the steering crank
34" cut Evolution FASTCUT34, 13.5hp to 26hp, FASTCUT 17.5/34 Deluxe, GT228995, 25/34 V-Twin Deluxe, GT22900 as the inner and outer tie rod ends for the sterring drag links and is also used as the tie rod end that connects the steering link rod to the steering crank
34" cut Evolution e2000 MK2A, 16/34 and 17/34 as the tie rod end that connects the steering rod to the chain sprocket wheel
39" cut Evolution III, 12.5/38 as the tie rod end that connets the steering link rod to the chain sprocket wheel
42" cut FASTCUT 25/42 V-Twin Deluxe GT22885 as the inner and outer tie rod ends for the steering drag links and is also used as the tie rod that connects the steering link rod to the steering crank.

Measurements:
Male end: M10 x 1.25 right hand thread
Female end: M10 x 1.25 right hand thread
Thread Length: 0.787" (20mm)
Overall Length: 2.303" (58.5mm)
Overall Height: 2.086" (53mm)
