Belt Replaces Murray: 690071/MA, 1001223/MA, Snapper: 2-2252 and 1-8236 or Stihl, Viking: 70048721326 and 61217042150

Belt Replaces:

Murray: 690071, 690071MA, 1001223 and 1001223MA
Snapper: 2-2252 and 1-8236
Stihl: 70048721326 and 61217042150
Viking: 70048721326 and 61217042150

___________________________________________________________

Fits:

Murray
40" cut   40307X58B, 403017X58A, 40316X11B, 40377X11B, 40378X11B, 40317X50C, 40318X50A, 40318X50B, 40318X50C, 40319X51B, 40319X51C, 40319X88A, 40319X98B, 40319X98C, 40320X88, 40370X50B, 40370X50C, 40371X50B, 40372X50B, 40372X51B, 40373X68A, 40379X68A, 40379X88, 40382X58, 40383X58B, 40382X58C, 40383X58B and 40383X58C as one of two cutter deck belts.

Snapper
25", 26", 28" and 30" cut   7 through to 14 series steering wheel models as the cutter deck belt.

Stihl- Viking
40" cut   MT770H rear discharge models, left hand side long PTO to cutter deck belt. One of two belts, use with PN459.

___________________________________________________________

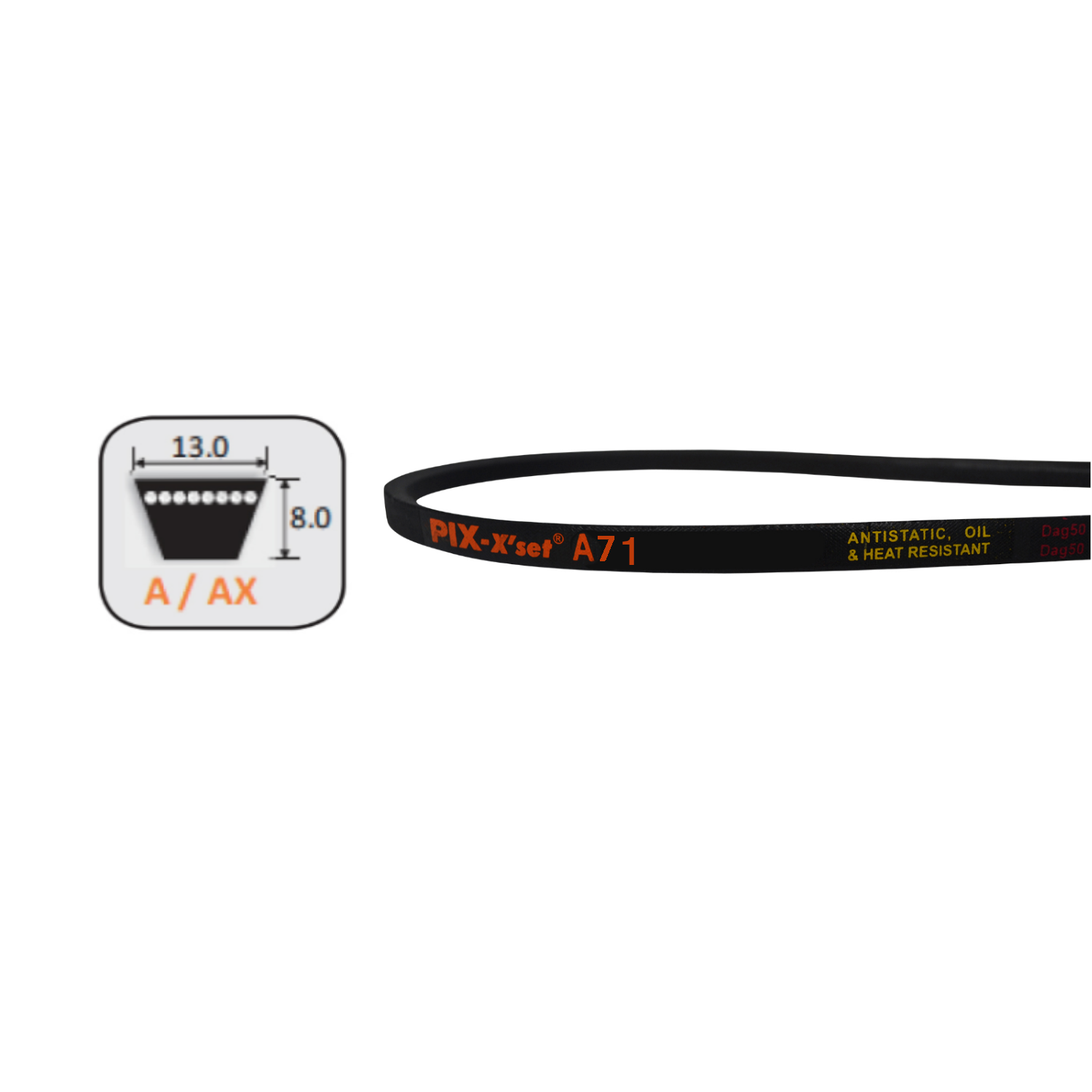

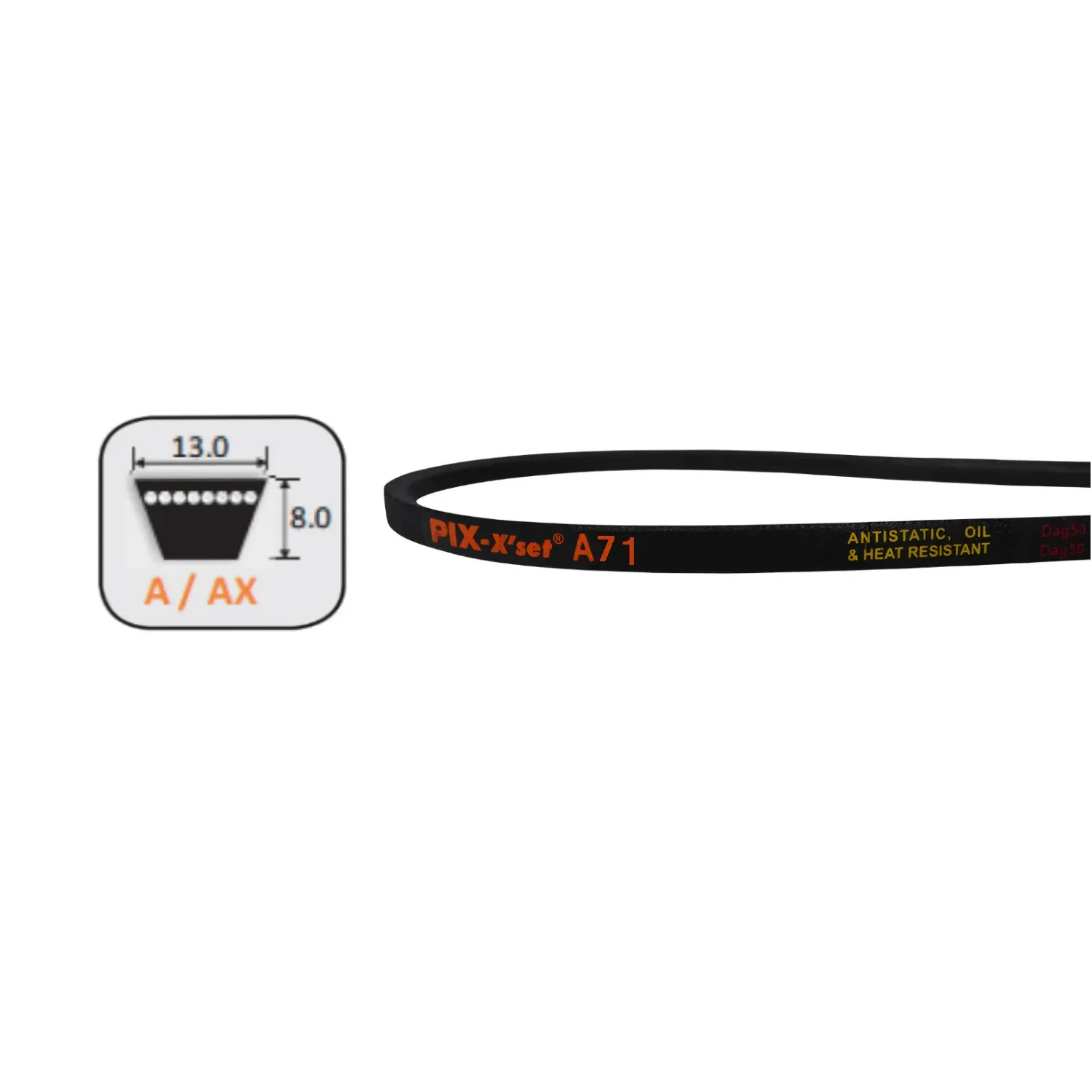

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 71" (mm): 1803mm
Outside circumference (inches) 73" (mm): 1854mm
(Non-genuine)

All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
