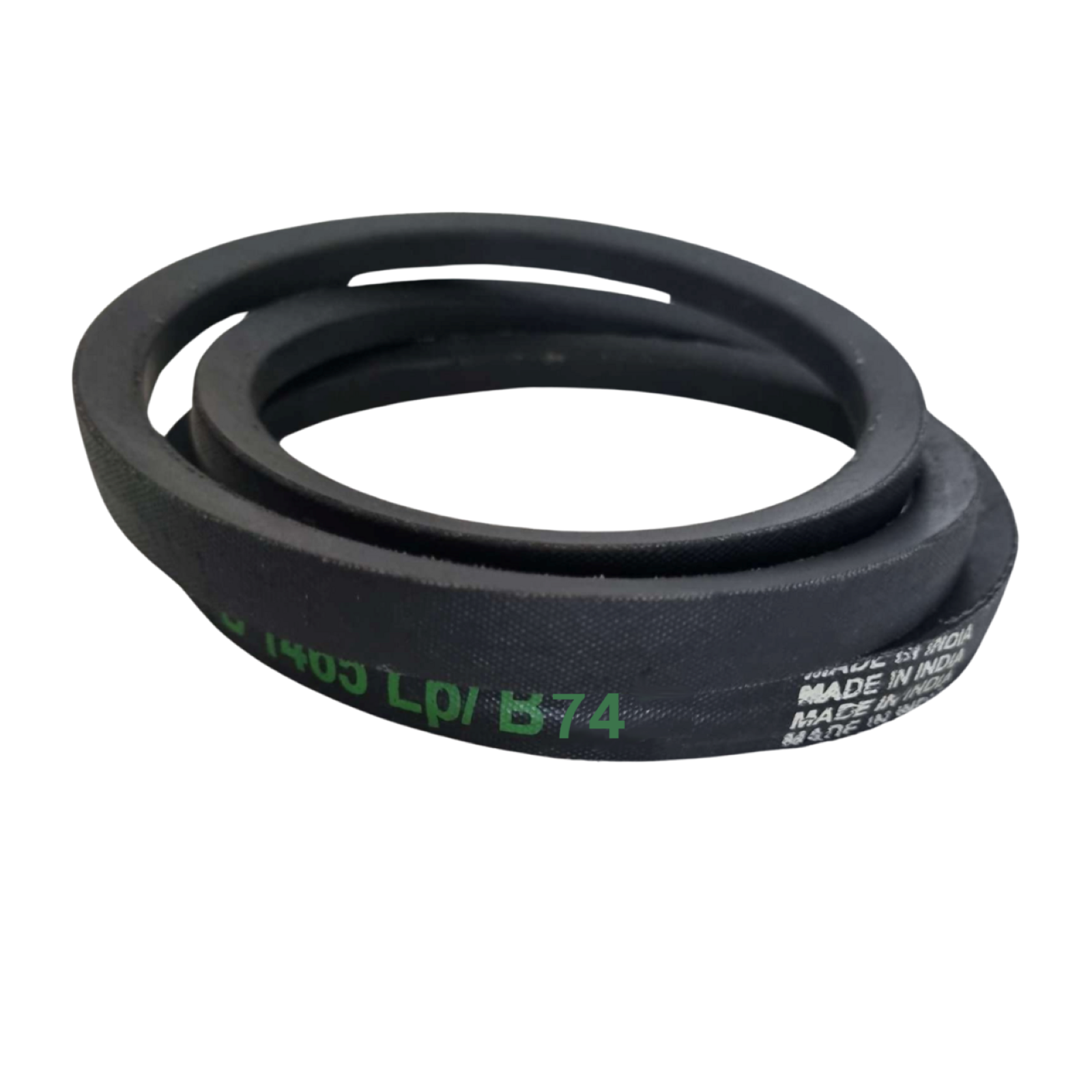

Belt replaces COX SV16 or V16

Belt Replaces:

Cox   SV16 or V16
___________________________________________________________

Fits:

Cox
Stockman
1993 - 1994   12.5hp, 14hp and 15hp    25E94 and 25K94 as the engine to clutch belt
28" cut   1994 - 1995   12hp 25H94 as the engine to clutch belt
28" cut   1995 - 1998   10.5hp and 12hp    09C95 and 43H95 as the engine to clutch belt
32" cut   1995 - 1996   12.5hp, 15hp and 16hp   25C95 and 25K95 as the engine to clutch belt
32" cut   1996 - 1998   13hp and 16hp 25K96 as the engine to clutch belt

Stockman Economy
28" cut   1998 - 2002   11.5hp and 13hp 4398H as the engine to clutch belt
30" cut   1998 - 2002   11.5hp and 13hp 4398H as the engine to clutch belt
32" cut   1998 - 2002   11.5hp and 13hp 4398H as the engine to clutch belt

___________________________________________________________

Belt Details:

Width: (inches) 5/8" (mm): 17mm
Inside circumference (inches) 74" (mm): 1879mm
Outside circumference (inches) 77" (mm): 1955mm
(Non-genuine)

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• Allwyn belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
