2x Bearings to Replace Deutscher Z35, Scott Bonnar HA25001A, 3531018 or Victa A122422

2x Bearings to Replace Z35, HA25001A, 3531018 or A122422

Replaces OEM#:
Deutscher   Z35
Scott Bonnar   3531018 and A122422
Victa   HA25001A
___________________________________________________________

Fits:

Deutscher
Early EE5   as the gearbox input shaft bearing

Greenfield
28" Drive plate alloy as the drive shaft bearing

Scott Bonnar
30"   as the chain shaft bearing
30"   Queen   as the rear drum bearing

Victa
125cc and 160cc engine as the top and middle crank shaft bearing
Not suited for power torque engines

___________________________________________________________

Bearing Details:

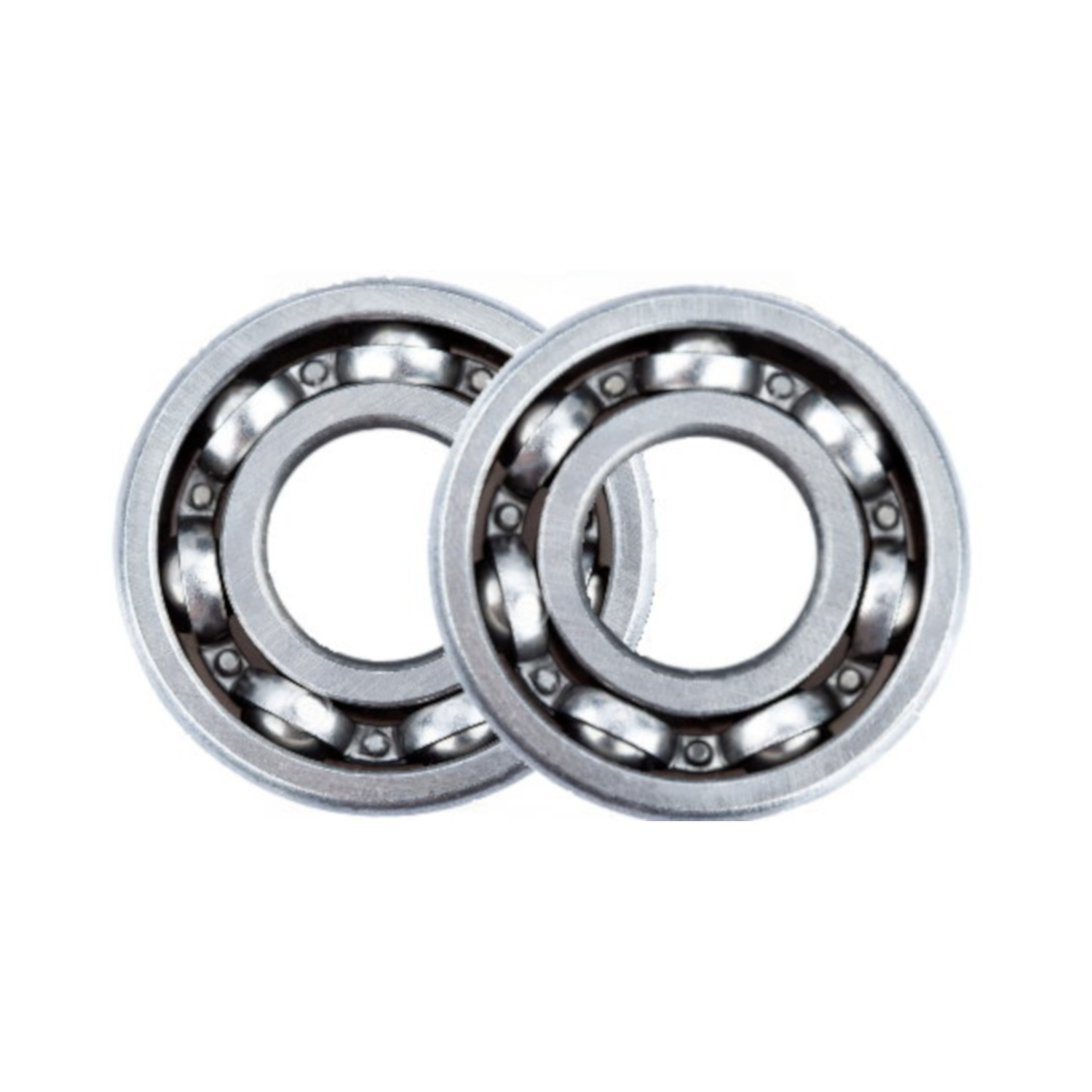

2x open bearings with C4 Clearance
ID: (mm): 20mm
OD: (mm): 47mm
Width: (mm): 14mm

These bearings have the same load rating as NTN and TIMKEN.

All parts should be fitted by a licenced professional and fitted to vehicle specifications

• Premium bearings made from premium alloy steel to provide superior fatigue life and reliability
• Precise heat treatment, dimensions and surface finish contributes to reliable bearing performance
• Each component undergoes ACCOR rigorous testing to ensure quality standards
